In water treatment systems, the intake structure directly affects the stability of the entire water supply process. Raw water from rivers, lakes, reservoirs, or seawater often contains floating debris, suspended solids, and organic materials.
A properly designed
Hydro Intake Screen helps protect downstream pumps and treatment equipment while maintaining stable water flow.
The design of an intake screen should consider multiple factors, including flow conditions, screen opening, hydraulic performance, material selection, and maintenance requirements.
Key Design Factors for Hydro Intake Screens
Flow Rate and Screen Capacity
Flow rate is one of the primary factors in Hydro Intake Screen design.
The screen structure and size need to match the required intake capacity while maintaining stable operation.
Improper sizing may result in:
- Increased flow resistance
- Higher maintenance frequency
- Reduced system performance
Therefore, screen capacity should be evaluated according to the actual water intake requirements.
Approach Velocity and Hydraulic Performance
Approach velocity refers to the water velocity approaching the screen surface.
It affects:
- Debris accumulation
- Head loss
- Overall intake performance
A suitable approach velocity helps maintain stable water flow and reduces the risk of excessive loading on the screen surface.
Slot Opening Selection
Slot opening is a critical parameter in wedge wire intake screen design.
The selection should be based on:
- Raw water quality
- Particle characteristics
- Downstream equipment requirements
A smaller slot opening provides finer screening, while a larger opening allows higher flow capacity with lower resistance.
The correct balance depends on the specific application conditions.
Open Area Ratio
Open area ratio determines how much effective area is available for water flow.
A higher open area can help:
- Reduce pressure loss
- Improve hydraulic efficiency
- Maintain stable intake flow
Wedge wire screens use continuous slot openings, providing uniform water distribution compared with conventional perforated plates.
Material Selection for Long-Term Operation
Hydro Intake Screens operate in different water environments, making material selection important.
Common materials include:
SS304 Stainless Steel
Suitable for general freshwater applications.
SS316L Stainless Steel
Suitable for:
- Seawater intake
- Corrosive environments
- Industrial water systems
The material should be select ed according to water quality and operating conditions.
Wedge Wire Screen Design for Hydro Intake Applications
Continuous Slot Structure
Wedge wire screens are manufactured using V-shaped wires welded together to create continuous slot openings.
This structure allows:
- Uniform water flow
- Reduced particle blocking
- Stable filtration performance
Structural Strength and Custom Design
Wedge wire intake screens can be customized according to project requirements, including:
- Screen dimensions
- Slot opening
- Material grade
- Installation structure
The welded construction provides mechanical strength for long-term underwater applications.
Common Challenges in Hydro Intake Screen Systems
Debris Accumulation and Screen Clogging
Screen clogging is often related to:
- Water source conditions
- Incorrect slot opening
- Insufficient screen area
Proper design and material selection help reduce debris accumulation.
Maintenance Requirements
Maintenance requirements depend on:
- Screen type
- Installation conditions
- Cleaning method
Considering maintenance during the design stage helps improve long-term operation.
How to Select the Right Hydro Intake Screen
Analyze Water Source Conditions
The first step is understanding the intake environment:
- River
- Lake
- Reservoir
- Seawater
Different water sources contain different types of contaminants.
Determine Screening Requirements
Selection should consider:
- Required filtration level
- Downstream equipment protection
- Operating conditions
Select Suitable Screen Type and Material
The final design should balance:
- Hydraulic performance
- Filtration requirements
- Material compatibility
- Maintenance needs
Hydro Intake Screen Design Case Study
Wedge Wire Intake Screen for Raw Water Treatment Application
Project Background
A water treatment facility required an intake screen solution for collecting raw water from a surface water source.
The water contained floating debris and suspended solids, creating a risk of contamination entering the pumping system.
The project requirements included:
- Stable water intake
- Protection of downstream equipment
- Long-term underwater operation
- Reduced maintenance requirements

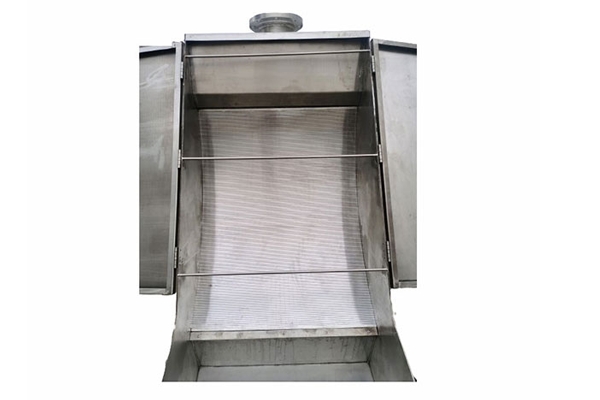

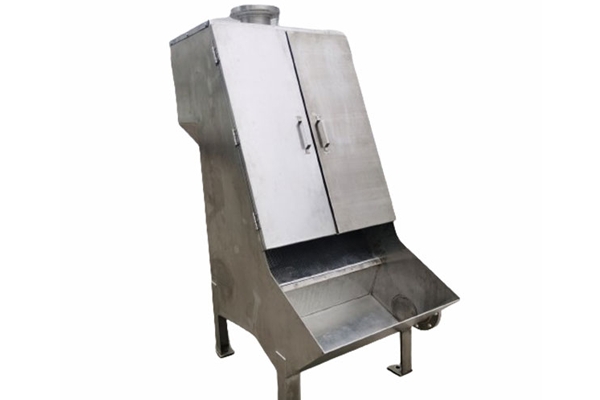

Screen Design
A customized wedge wire intake screen was select ed.
Screen Type: Wedge Wire Intake Screen
Material: SS316L Stainless Steel
Slot Opening: 3 mm
Installation: Submerged Intake System
Design Considerations
The design focused on:
- Selecting suitable slot opening according to raw water conditions
- Using corrosion-resistant stainless steel material
- Maintaining sufficient water passage area
- Ensuring structural stability during operation
The continuous slot design helps maintain consistent water flow and supports long-term intake performance.
Applications of Hydro Intake Screens
Hydro Intake Screens are commonly used in:
- Municipal water treatment plants
- Industrial water intake systems
- Hydropower intake systems
- Cooling water systems
Frequently Asked Questions About Hydro Intake Screens
What Is the Difference Between a Hydro Intake Screen and a Water Treatment Filter?
A Hydro Intake Screen is mainly used at the water intake stage to remove larger debris and protect downstream equipment, while a water treatment filter is used for further filtration during the treatment process.
Can Wedge Wire Intake Screens Be Used in Seawater Applications?
Yes. Stainless steel wedge wire screens, especially SS316L, can be used for seawater intake applications when corrosion resistance is required.
Can Hydro Intake Screens Be Customized for Different Projects?
Yes. Screen dimensions, slot opening, materials, and installation structures can be customized according to specific project requirements.
