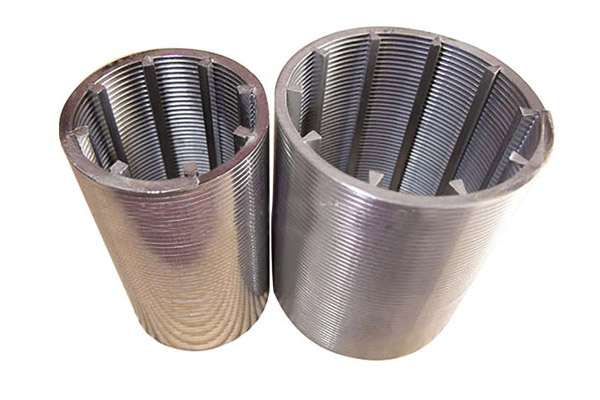

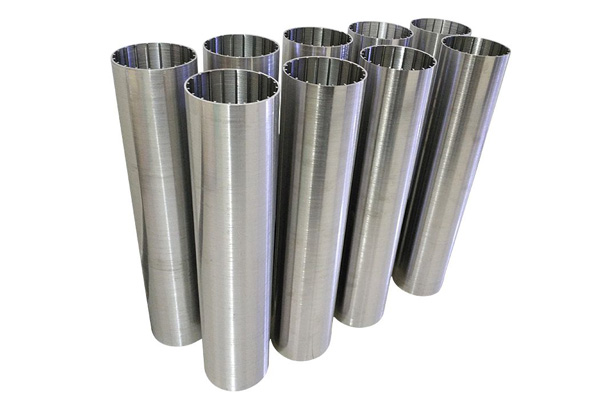

A Stainless Steel Wedge Wire Screen Pipe is a high-performance filtration component manufactured by precisely welding V-shaped profile wires to support rods. Its unique continuous slot structure features an opening that is wider on the outside and narrower on the inside, effectively preventing particle clogging while ensuring smooth fluid flow and accurate filtration. Typically made from high-quality stainless steel, it offers excellent corrosion resistance, wear resistance, and mechanical strength, enabling long-term stable operation under high pressure, high temperature, and demanding conditions. It is widely used in water treatment, petrochemical processing, food production, and mining applications, making it an essential component for efficient filtration and separation.
Advantages of the Continuous Slot Design
The constant slots wedge slot design enables a series of essential benefits. It provides a great open area to maximize flow rates while maintaining highly efficient filtration. Clogging is prevented through the maintenance of particles moving off from the slots rather than getting stuck. Self-cleaning through the wedge profile helps in maintaining consistent performance and reducing maintenance.
Benefits of Wedge Wire Screens in Industrial Practice
Non-Clogging Operation in Harsh Environments
One of the key reasons why wedge wire screens are employed instead of other screens in other industries is that they are non-clogging. By forming spaces between the V-shaped wires in wedge shapes, the fluid moves freely, while solid filtering can be quite successful. This means they are quite handy in systems where sediment or particulate matter could lead to continuous clogging in other mesh filters.
Durability and Corrosion Resistance
Another characteristic of wedge screen technology is durability. Wedge wire mesh is very strong and corrosion-resistant, with high strength. The products are manufactured using 304 or 316L stainless steel, depending on the requirements of the clients, thus making them suitable for long service life even when exposed to aggressive chemicals or high pressure.
Applications
Based on the above features and advantages, Wedge Wire Screen Pipes are widely applied across multiple industries where efficient filtration, durability, and non-clogging performance are critical:
1. Water Treatment & Filtration Systems
Used in well screens, intake systems, sand filters, and ion exchange units, wedge wire pipes ensure uniform water distribution and effective removal of suspended solids.
2. Oil & Gas / Petrochemical Industry
Applied in sand control screens, catalyst support, and resin traps, they provide reliable filtration under high pressure, high temperature, and corrosive environments.
3. Food & Beverage Processing
Ideal for liquid-solid separation processes such as juice clarification, sugar processing, and starch production, where hygiene, precision, and easy cleaning are essential.
4. Mining & Mineral Processing
Commonly used for dewatering, slurry separation, and classification, helping improve processing efficiency while reducing equipment downtime.
5. Pulp & Paper Industry
Utilized in fiber recovery and screening processes to enhance material reuse and improve overall production efficiency.
6. Wastewater Treatment
Applied in industrial and municipal wastewater systems for solid-liquid separation, contributing to cleaner discharge and sustainable operations.
FAQ – Wedge Wire Screen Pipe
Q1: Why does a wedge wire screen pipe clog less than traditional filters?
A1: Its V-shaped wire structure creates a narrow inner slot and wider outer opening, allowing particles to pass or slide off easily instead of becoming trapped, which significantly reduces blockage issues.
Q2: Can wedge wire screen pipes handle high-pressure systems?
A2: Yes. Their welded stainless steel construction provides strong mechanical integrity, making them suitable for high-pressure and continuous-flow industrial environments without deformation.
Q3: What makes it better than mesh or perforated pipes?
A4: Unlike woven mesh or punched holes, wedge wire screens maintain consistent slot openings that resist deformation and fouling, ensuring more stable filtration performance over time.
Q4: Is it suitable for corrosive or chemical-heavy environments?
A5: Yes. When made from grades like 304 or 316L stainless steel, it offers strong resistance to corrosion, making it reliable in aggressive chemical or saline conditions.
Q5: Can the slot size be customized for different applications?
A6: Absolutely. Slot openings, pipe diameter, and structure can be tailored based on particle size, flow rate, and process requirements to achieve optimal filtration efficiency.
