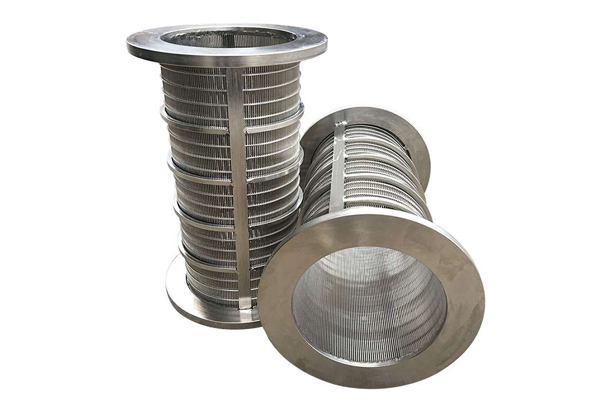

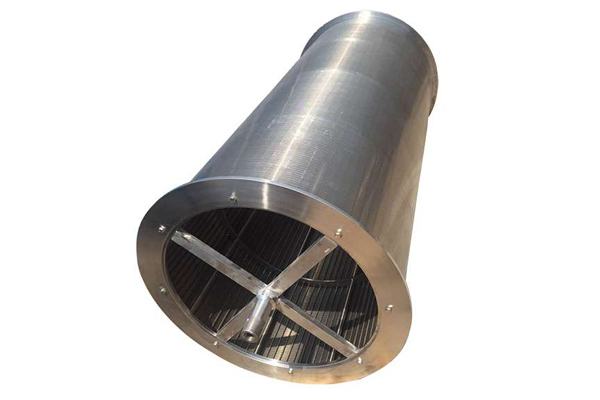

A Wedge Wire Screen Cylinder, also known as a stainless steel wedge wire filter cylinder, is an advanced filtration component designed for high-efficiency solid-liquid separation in industrial applications. Constructed by welding V-shaped profile wires onto support rods, it forms a cylindrical screen with continuous slot openings that ensure precise filtration and smooth flow. Thanks to its non-clogging structure and robust stainless steel construction, this type of screen cylinder is widely used in water treatment, chemical processing, food production, and mining industries. As demand grows for durable and high-performance filtration solutions, wedge wire screen cylinders have become a preferred choice for improving system efficiency and reducing maintenance costs.
Features & benefits
No clogging.
Mechanical strength.
Corrosive resistance.
Low pressure drop.
Less maintenance cost.
Servicing longer life.
Custom specification & end connections.
Wedge wire screen cylinders are suitable for high load filtration and low maintenance for all types of industries.
Drink Industry
Can Food Industry
Paper &Pulp
Power Plant
Liquor Plant
Petrochemicals, such as. oil filtration
Water treatment, such as . desalination of seawater, wastewater treatment, etc.
Chemical industry, such as. acid, alkali filtration
Hydrogeological exploration and drilling construction
Food waste disposal
Livestock waste treatment
The Wedge Wire Screen Cylinder stands out as a reliable and high-performance filtration solution for modern industrial applications. With its non-clogging V-shaped wire design, strong mechanical structure, and excellent corrosion resistance, it delivers efficient filtration while maintaining low pressure drop and reduced maintenance costs. Its long service life and customizable specifications make it adaptable to a wide range of operating conditions. From water treatment and petrochemical processing to food, beverage, and waste management industries, wedge wire screen cylinders provide consistent performance under high-load environments, making them a smart and cost-effective choice for improving overall system efficiency and operational reliability.
FAQ – Wedge Wire Screen Cylinder
Q1: How do I choose the right slot size for my application?
A: Slot size depends on the particle size you need to retain and the required flow rate. A smaller slot offers finer filtration but may reduce flow, while a larger slot improves throughput. It’s best to match the slot opening with your media characteristics and system requirements.
Q2: How often do they need cleaning or replacement?
A: Due to the self-cleaning effect of the V-shaped wires, cleaning frequency is significantly reduced. In many cases, simple backwashing or routine flushing is sufficient, extending service intervals and lowering downtime.
Q3: Are they suitable for corrosive or harsh environments?
A: Absolutely. They are typically made from stainless steel or special alloys, which perform well in corrosive conditions such as chemical processing, seawater filtration, or acidic/alkaline environments.
Q4: What makes wedge wire better than perforated or mesh filters?
A: The continuous slot structure provides more open area, better flow efficiency, and reduced clogging risk, which translates into improved performance and lower maintenance over time.
Q5: Is it a cost-effective solution in the long run?
A: While the initial cost may be higher than some alternatives, the longer lifespan, reduced maintenance, and improved efficiency typically result in lower total operating costs.
